Hdmi Splitter

Product Description

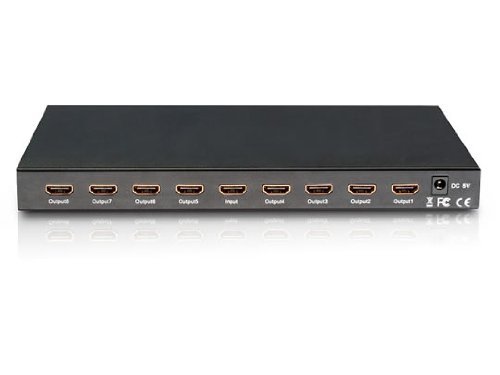

HDMI Splitter Powered 1x8

This splitter is smaller in size and more beautiful in appearance. It distributes the input of the HDMI signal into the eight identical outputs simultaneously. It supports HDCP and the real HDMI 1.3b. Its video amplifier bandwidth can be up to 2.25 Gpbs/225MHz.

The HDMI Splitter offers solutions for HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

Connect One HDMI sources to up to four HDTV display devices
Maintains 480i, 480p, 720p, 1080i and 1080p resolutions
Maintains highest HDMI single link video resolution and digital audio signal
Supports HDCP compliant devices
HDMI or DVI-HDMI cables are used to connect to the input and splitter outputs
Active output channels are displayed on the front panel LED's, which are automatically activated when a cable is connected to the corresponding output.
Can be connected in series with a Cmple.com HDTV HDMI switcher for connection of multiple sources to multiple display devices.

Specs & Features

Video Amplifier Bandwidth: 1.65Gbps
Input Video Signal: 1.2Vp-pMax
Input Connector Type: HDMI 19pin
Output Connector Type: HDMI 19pin
Power Supply: 6VDC, 3A
Dimensions: 441*150*22(mm)
HDMI splitter
Power Supply
User Manual
Mount and screw ....read more
