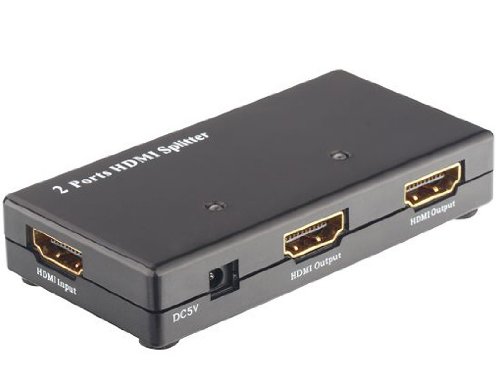

Use this amplified HDMI splitter to get identical output on two HDMI-compatible displays. Simple three step instructions: 1- Plug the HDMI sources and display devices into the splitter. 2- Connect the DC plug on the power adapter to the splitter. 3- Plug the other end of the power adapter into a wall outlet. Then turn on the power!
Output Video: HDCP 1.0/1.1, HDMI 1.2a
Input DDC Signal: 5 volts p-p(TTL)
Maximum Single Link Range: 1920x1080p
Video Amplifier Bandwidth: 165MHz/1.65Gbps per channel (4.95Gbps all channel)
Vertical Frequency Range: 50/60Hz
Video formats supported - VGA: 640x480, 800x600, 1024x768, 1280x1024
Video formats supported - DTV/HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Supports 8bit per channel (24bit all channel) deep color
Supports uncompressed audio such as LPCM, compressed audio such as DTS Digital, Dolby Digital (including DTS-HD & Dolby True HD)
External Power Supply: 5V DC@2A
Power Consumption (max): 5W
AC Adapter included
Please check the DRM (Digital Rights Management) settings of the devices you will use with the splitter to ensure the splitting of the signal is not restricted by the manufacturer. ....read more
